Ecosystem architecture

DreamLayer is one product spread across four runtimes. Each does the thing it is physically best placed to do, and the boundaries between them are explicit, tested contracts.

 Halo glasses ── BLE ──> Phone (the hub) ── LAN / relay ──> Mac mini (the Brain) ── opt-in ──> Cloud
  render + sense          orchestrator: memory,              index over your files,             frontier reach,
  33 card renderers       privacy gate, Juno,              mail, calendar; Ollama;            logged on every
  gestures, Horizon       Veritas, anticipation              the control panel                  single call

The four runtimes

1. Halo firmware — halo-lua/

Lua that runs on the Brilliant Labs Halo. It owns exactly two jobs: draw and sense. The display code (halo-lua/display/) implements the Meridian design language — the Horizon day-ring resting state, 33 card renderers, the Lumen motion engines (springs, palette animation, particles, parallax) and the Solid material system (glass panes, gradient ramps, real font sizes). The app layer (halo-lua/app/) holds a small state machine and an IMU gesture classifier (nod-to-save, double-nod, shake-to-dismiss, glance-peek, tilt-reveal). The glasses never think; every card they draw arrives as a plain JSON dict over BLE.

2. The orchestrator (the hub) — host-python/src/dreamlayer/orchestrator/

The mind of the product, designed to run on the phone. One Orchestrator class coordinates everything — since the decomposition pass it is a thin coordinator composed of twelve focused ops mixins (ingest, conversation, commitments, world lenses, brain switches, messages, dream/REM, confluence, Juno/attention, plugins, Ember, Stasis), behavior-preserving and API-identical. It coordinates: the Juno voice assistant, the conversation ledger and live captions, Veritas fact-checking, Truth Lens delivery reads, Discernment fusion, answer-ahead, the anticipation and attention engines, commitment capture, time-scrub rewind, the Social Lens, Dream Mode, and the Privacy Veil that gates all of it. It talks down to the glasses through a bridge (cards out, gestures back) and up to the Brain over HTTP.

3. The Mac mini Brain — host-python/src/dreamlayer/ai_brain/server/

A local HTTP server (default port 7777) that turns an always-on Mac into a private knowledge node: it indexes folders you choose, reads Messages, Mail, Calendar, Contacts, and Reminders (macOS seams), runs an optional Ollama model for written answers and vision, schedules the morning brief, tracks the Saga, and serves a full control panel as a single self-contained HTML page. Every request carries the pairing token header X-DreamLayer-Token; anything that exposes secrets, the filesystem, or outbound sends is additionally local-only (403 from off-box). The bind itself is now loopback-by-default: a bare run listens on 127.0.0.1 only, an empty token is trusted only from loopback, and exposing to the LAN (--host 0.0.0.0) mints a random pairing token if none is set — an unauthenticated network Brain can no longer exist.

4. The phone app — phone-app/

Expo / React Native. Seven tabs (Brain, Now, Look, Messages, People, Memories, Settings) plus hidden screens (Brief, Plugins, Waypath, Capabilities, Device Vitals, Feel, Rewind, Saga, Profile, Rehearsal, Confluence, Cloud, Brain tiers) and onboarding. It is the remote control: pairing, the three brain switches, every Juno and privacy toggle, message approval, and read-outs of everything the Brain knows — and it carries a Demo Mode that fills every screen with labeled sample data so the app is alive before any hardware is. It now also ships its own Jest test suite alongside the strict typecheck.

A fifth, smaller piece — laptop-companion/ — is a stdlib-only agent serving one endpoint (GET /dreamlayer/context: recent file names, hostname, battery) so any laptop can appear in the glasses' world model without running the full Brain.

How they talk

Glasses <-> phone: BLE

Framed JSON: a 4-byte big-endian length prefix, then UTF-8 JSON, reassembled across MTU fragments (halo-lua/ble/protocol.lua, mirrored by host-python/src/dreamlayer/bridge/ and the phone's pure-TS BLE core, phone-app/src/ble/framing.ts + bridge.ts). Every message has a t type field. Downstream: card, command (show_ready, pause, resume, ask, wake, reset), horizon frames, dream frames, amp (a ~15-byte live microphone amplitude used only while the listening card is up), palettes, sprites, and Reality Compiler figments. Upstream: button (single/double/long), imu_tap, gesture events, figment acks, connect/disconnect.

Phone <-> Brain: HTTP

Plain JSON over HTTP with the token header. The phone prefers the LAN URL from the pairing bundle and falls back to an optional relay URL when away from home (brainFetch in phone-app/src/state/useBrainStore.ts). The full endpoint surface is in the API reference.

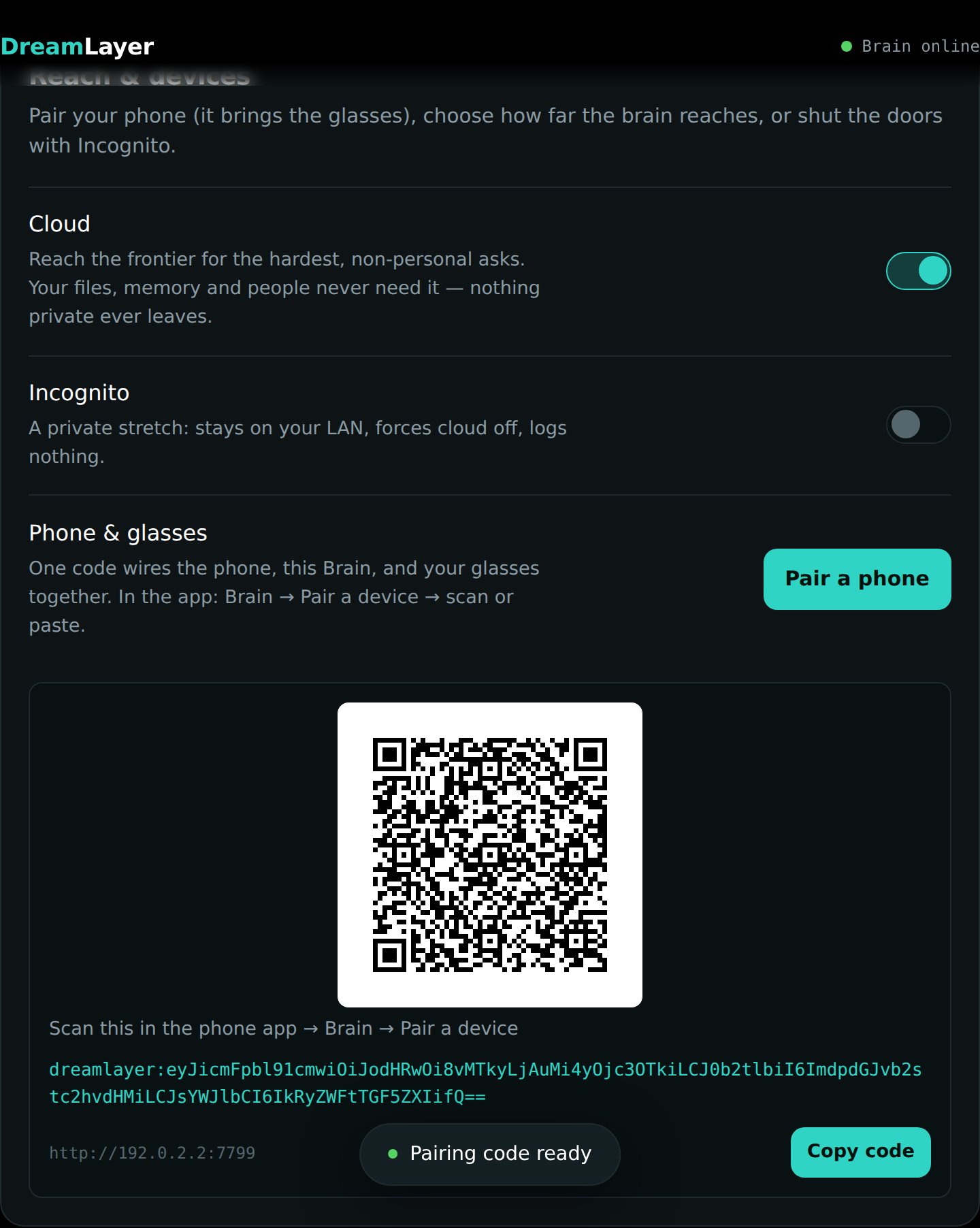

Pairing: one code for the whole trio

GET /dreamlayer/pair (local-only, surfaced as a QR in the panel) returns a dreamlayer: URI: base64url-encoded JSON carrying brain_url (the LAN address, never loopback), token, optional glasses_id, label, and optional relay_url. The phone scans or pastes it once (phone-app/src/services/pairing.ts is byte-for-byte compatible with host-python/src/dreamlayer/pairing.py), and the phone, the Brain, and the glasses are wired in one step.

The tiered brain

Intelligence lives at the lowest tier that can do the job:

The router (ai_brain/router.py) tries tiers lowest-first and never crosses to cloud without the opt-in gate. Every Answer carries the tier it came from (device / laptop / cloud), its sources, and a confidence — so the HUD and the phone can always show where a claim came from. The AI Brain deep dive covers the full routing rules, and the three switches chapter covers control.

The device seam concept

DreamLayer is a pre-hardware build, and it is honest about it. A seam is a narrow, named point where the tested software meets a physical capability it cannot fake:

• BLE render + input — sending card dicts to real glass; receiving real taps. (The raster harness runs the actual device Lua against a software frame, so the rendering itself is exercised today.)
• Microphone + ASR — everything downstream of "text in" is built; producing that text (and spotting the wake word acoustically) is the seam.
• Camera frames + face embedding — the Social Lens matches 512-d embeddings against your own contacts; the embedding model on the NPU is the seam.
• Truth Lens face and voice channels — the linguistic channel is computed for real from captions; action-unit and prosody frames arrive through observe_face / observe_voice.
• macOS readers — Messages, Mail, Calendar, Contacts, Reminders return real data on macOS and empty lists elsewhere; sending is osascript behind an explicit approved: true.
• The cloud verify call — Veritas' world-check routes through the same tiered router as everything else; with no tier able to answer it returns None and the offline self-contradiction pass still runs.

Everything not listed as a seam in Hardware and seams is implemented and covered by the test suite.

Repository map

dreamlayer/
├── halo-lua/              device firmware: display/, app/, ble/, lib/, system/
├── host-python/           the Python engine (orchestrator + Brain + HUD mirror)
│   └── src/dreamlayer/
│       ├── orchestrator/  the hub: Juno, Veritas, attention, anticipation...
│       ├── ai_brain/      tiered router, verify, saga; server/ is the Mac Brain
│       ├── hud/           Python mirror renderer, cards, goldens, audio map
│       ├── demo/          the emissive-overlay demo/film pipeline
│       ├── bridge/        BLE bridge + the Lua raster harness (lupa)
│       ├── simulator/     the Python Halo Simulator (the real stack, no glasses)
│       ├── social_lens/ truth_lens/ object_lens/ lucid_recall/ ...
│       └── tests/         3,022 collected tests
│   └── packaging/         the macOS .dmg app (py2app, entitlements)
├── phone-app/             Expo / React Native app + the App Store kit
├── reality-core/          the Rust figment interpreter core (native + wasm bindings)
├── laptop-companion/      minimal context agent + macOS Brain installer
├── examples/              hello-lens, the CI-tested plugin tutorial
├── registry/              the plugin marketplace catalog
├── registry-api/          the social API worker (api.dreamlayer.app)
├── landing/  web/         the website (dreamlayer.app: home, simulator, store,
│                          playground) + the Vite/TS rebuild
├── docs/                  design specs, integration map, this book (gitbook/)
└── scripts/               demos, exporters, the Lua lab

Want to hold the product before hardware exists? Two full simulators — one in the browser on the landing site, one running the real Python stack — are covered in The Halo Simulators.
